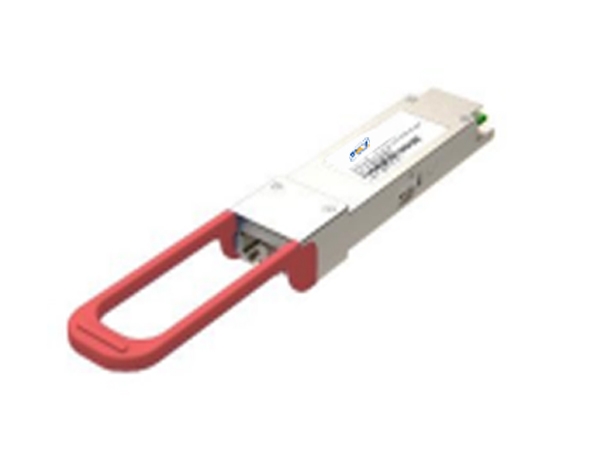

SQ-100G-LR-BD33
SQ-100G-LR-BD33
SQ-100G-LR-BD33
This product can support 100Gb/s bit rates. It is a parallel Quad Small Form-factor Pluggable (QSFP28) Bi-Direction optical module. The module integrates four host electrical data into two optical lanes (by Dual Wavelength EML Bi-Directional Optical Interface,T1331nm/R1271nm ) to allow optical communication over a 2-fiber duplex LC optical multi-mode fiber. Reversely, on the receiver side, the module de-multiplexes 2 sets of optical input signal and converts them to 4 channels of electrical data.-
l Supports 100GBASE-LR BIDI
l Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/s compatible
l Up to 10km transmission on SMF
l EML Laser and PIN receiver
l 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
l High speed I/O electrical interface
l I2C interface with integrated Digital Diagnostic monitoring
l QSFP28 MSA package with simplex LC connector
l Single +3.3V power supply
l Support HW TX_DIS and RX_LOS for telecom application
l Maximum power consumption 4 W
l Operating case temperature: 0 to +70 °C
l Compliant to 802.3cu, SFF-8636&SFF-8679 standard
l Complies with EU Directive 2015/863/EU
-
Package (Form Factor) QSFP28 Data Rate 100Gb/s Transmitter EML Receiver PIN Distance 10KM Centre Wavelength T1331nm/R1271nm Diagnostics Digital Monitor Operating Case Temperature 0°C ~ 70°C Voltage Supply (typical) 3.3v Connector Duplex LC TX Output Power -1.4~4.5dBm RX Sensitivity <-6.1dBm -
l 100GGBASE-LR1 BIDI
