400G QSFP112 Transceiver
SQ12-400G-VR4

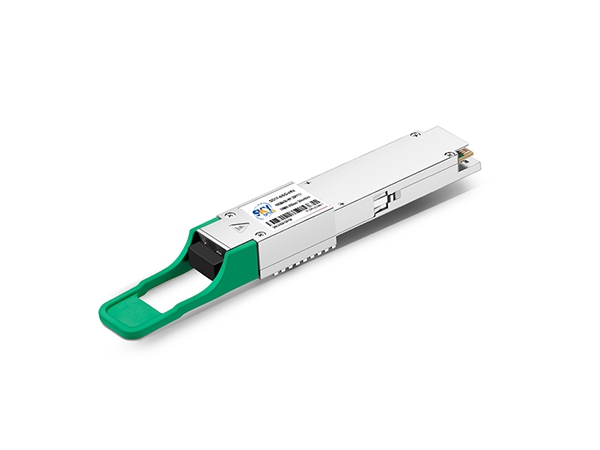

QSFP112 400G VR4 Transceiver
SkyOptics QSFP112 400G VR4 optical transceiver is designed for 400G Ethernet applications, supporting transmission up to 50m over OM4 and 30m over OM3 multi-mode fiber.
It adopts 4×106.25Gbps PAM4 architecture and 850nm VCSEL, complies with IEEE 802.3ck, features low power consumption and DDM function, and is widely used in high-speed data center interconnections.
It adopts 4×106.25Gbps PAM4 architecture and 850nm VCSEL, complies with IEEE 802.3ck, features low power consumption and DDM function, and is widely used in high-speed data center interconnections.
-
l Supports 425Gbpsl Single 3.3V power supplyl Power dissipation: Commercial version <8Wl Up to 50m over OM4 and 30m over OM3l RoHS compliant (lead-free)l 4x53.125GBd (PAM4) electrical interfacel MPO12-APC connectorl Commercial case temperature 0°C to 70°Cl VCSEL transmitterl PIN and TIA array on the receiver sidel I²C interface with integrated Digital Diagnostic Monitoring
-
l Part No.: SQ12-400G-VR4l Data Rate: 425Gbpsl Fiber Type: OM4, OM3 multi-mode fiberl Distance: 50m (OM4), 30m (OM3)l Interface: MPO12 APCl Case Temperature: 0~70°Cl DDM: Yesl CMIS: CMIS4.0
-
l 400GBASE-VR4
