400G QSFP112 Transceiver
SQ12-400G-SR4

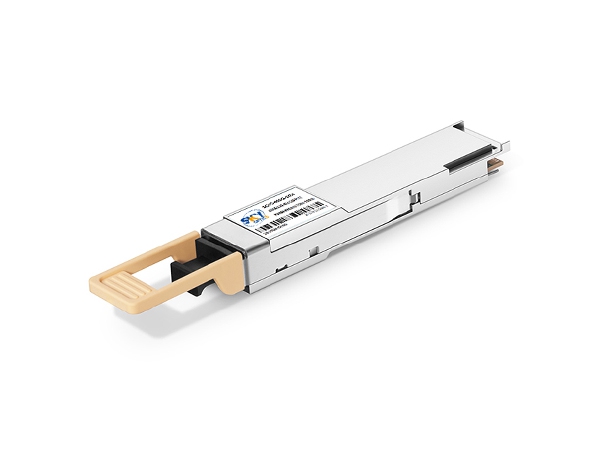

400G QSFP112 SR4 Transceiver
Sky Optics 400G QSFP112 SR4 optical transceiver operates at 850nm, supporting 100m transmission over OM4 multi-mode fiber. It adopts mature PAM4 solution with low power consumption, widely deployed for top-of-rack connection and spine-leaf short links in large-scale data centers. DDM function is available for real-time status monitoring.
-
l Supports 425Gbpsl Single 3.3V power supplyl Power dissipation < 8Wl Up to 100m over OM4, 70m over OM3l RoHS compliant (lead-free)l 4×53.125GBd (PAM4) electrical interfacel MPO12-APC connectorl Case temperature 0°C to 70°Cl VCSEL transmitterl PIN and TIA array on the receiver sidel I²C interface with DDM
l Compliant with IEEE 802.3ck, CMIS 4.0 -
l Part No.: SQ12-400G-SR4l Data Rate: 425Gbpsl Fiber Type: OM3, OM4 multi-mode fiberl Distance: 100m (OM4), 70m (OM3)l Wavelength: 850nml Connector: MPO12 APCl Case Temperature: 0~70°Cl DDM: Yesl CMIS: CMIS 4.0l Protocol: 400GBASE-SR4
-
l Data center ToR and leaf switch interconnectionl Spine-leaf network short-distance linksl 400G server and storage cluster accessl Enterprise data center short-range optical links
