400G QSFP-DD (QSFP56-DD) Transceiver
SQDD-400G-SR8

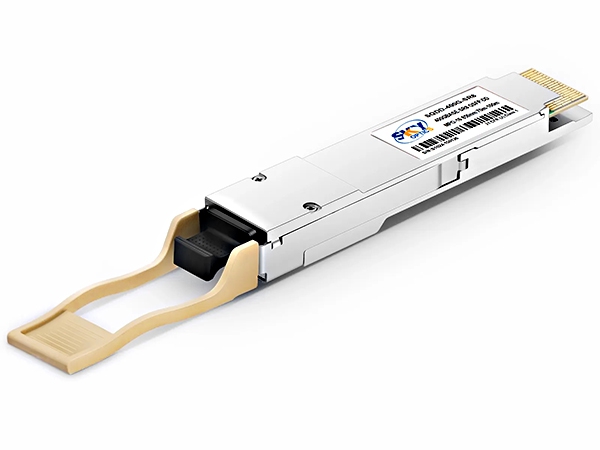

400G QSFP-DD (QSFP56-DD) SR8 Transceiver
Sky Optics 400G QSFP-DD SR8 is a standard short-reach multi-mode optical transceiver developed in accordance with IEEE 802.3ck 400GBASE-SR8 specification. It adopts 8-channel 850nm VCSEL array plus PAM4 modulation to realize total 425Gbps full-duplex bandwidth, equipped with MPO16-APC interface to support 70m over OM3 and 100m over OM4 multi-mode fiber transmission.
Adopting standard QSFP-DD hot-pluggable design, this module features low power consumption below 8W and stable operation in 0℃ to 70℃ commercial temperature range. It supports complete I²C DDM real-time diagnosis and CMIS4.0 protocol compliance. Built with mature optical coupling technology, it delivers excellent stability and universal compatibility with mainstream brand switches and servers.
As a cost-effective short-reach interconnection solution, it is widely used in cloud data center leaf-spine networking, ToR switch uplink and HPC computing cluster internal wiring
-
● Total bandwidth: 425Gbps via 8×53.125GBd PAM4 electrical interface● Single 3.3V DC power input● Typical power dissipation <8W● 70m(OM3),100m(OM4) multi-mode fiber reach● Lead-free & RoHS compliant● Comply with QSFP-DD MSA mechanical & electrical specification● MPO16 APC optical connector● Operating case temperature: 0℃ ~70℃● VCSEL array transmitter; PIN+TIA array receiver● I²C interface with complete DDM digital diagnostic● Conform to IEEE802.3ck 400GBASE-SR8 protocol
-
l Part No.: SQDD-400G-SR8l Data Rate: 425Gbpsl Wavelength: 850nml Fiber Type: OM3/OM4 MMFl Distance: 70m(OM3),100m(OM4)l Connector: MPO16 APCl Case Temp: 0~70℃l DDM: Yesl CMIS: CMIS4.0
-
● Cloud data center ToR & Leaf switch interconnection● High-density 400G server cluster access● Spine-Leaf fabric short-distance links● Large enterprise IDC internal wiring upgrade● 1x400GbE, 2x200GbE, 4x100GbE and 8x50GbE, Optical 50G PAM-4 per Lane
